The goals in managing fleets and commercial equipment center around reducing downtime and operating costs. A Tire Pressure Monitoring System helps fleet managers accomplish these objectives.
TPMS helps lower emissions, improve fuel economy, and prevent lost profits due to excessive downtime.
Replacement parts are a key component to any TPMS service program. Having the rite parts with the rite coverage is CRITICAL!
Once again, Bartec TPMS offers a solution that is easy to use, and designed to cover the vehicles that tire service companies service.
Rite-Sensor HD® TPMS Sensor Features
Features
- Fully programmable and cloneable to Commercial Trucks, Trailers and Buses
- Fully compatible with all rims from 17.5 – 24.5 inch
- Full coverage for all common OE- Retro Fit and Telematic-Sensors
- Fully programmable also under pressure and through the Tire!
- Single SKU!
Benefits
- Reducing breakdowns / downtimes
- Reducing fuel consumption
- Reducing tire consumption
- Reducing CO2 emissions
- Providing road safety
Don't Forget
To get the most from your new TPMS tool, register your tool, download the TPMS Desktop app and update your TPMS tool.
Assembly

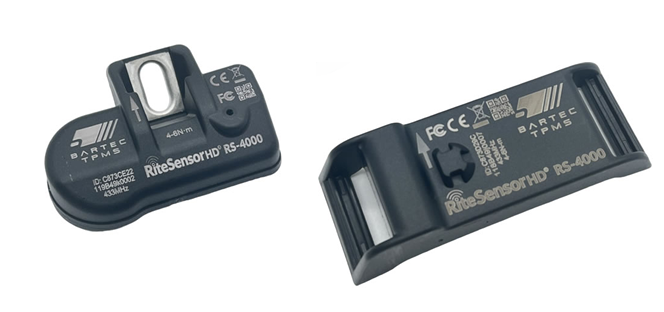

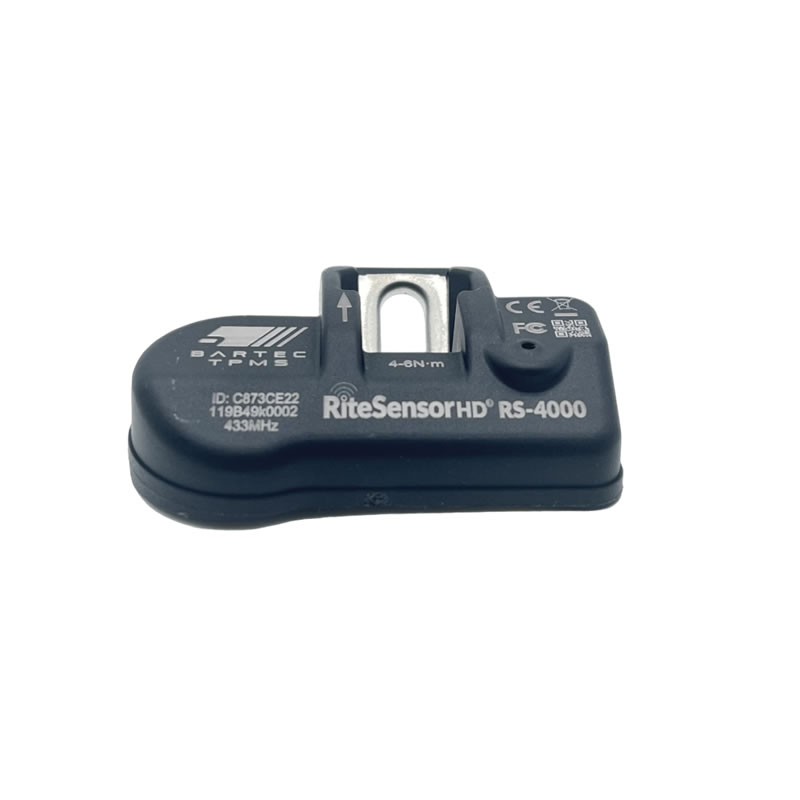

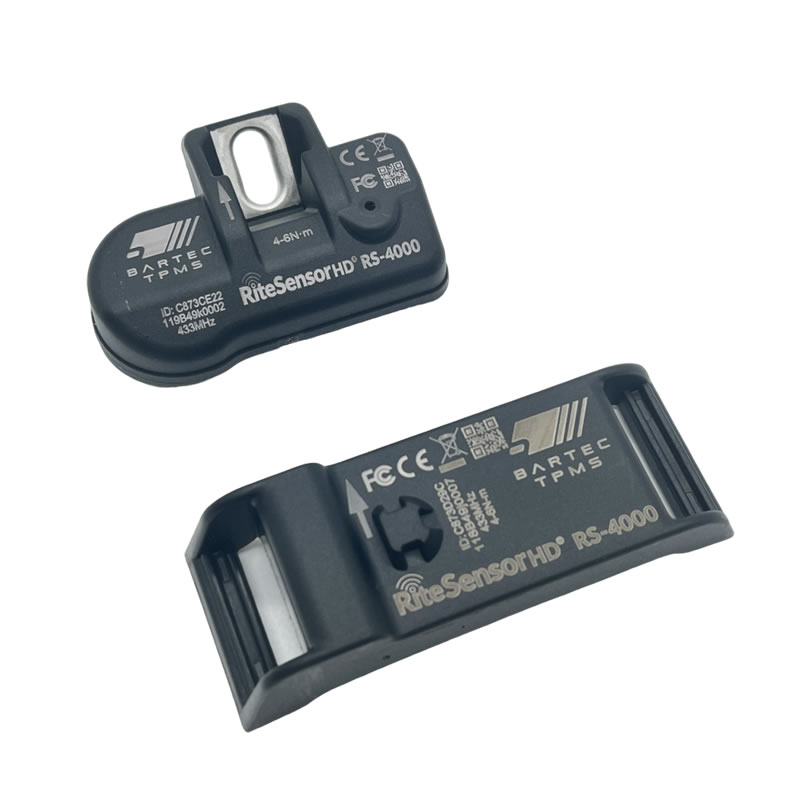

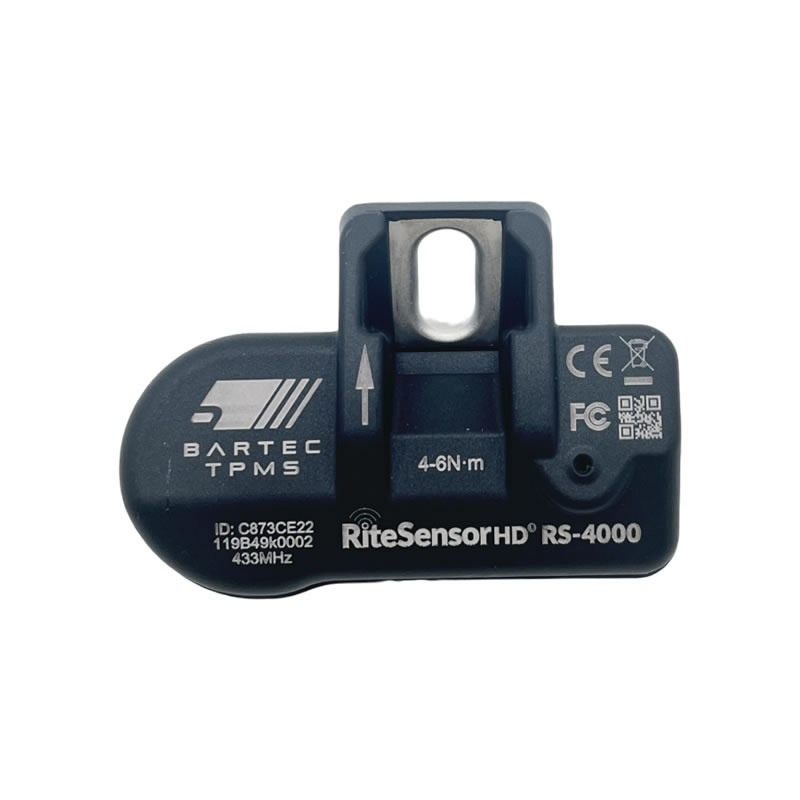

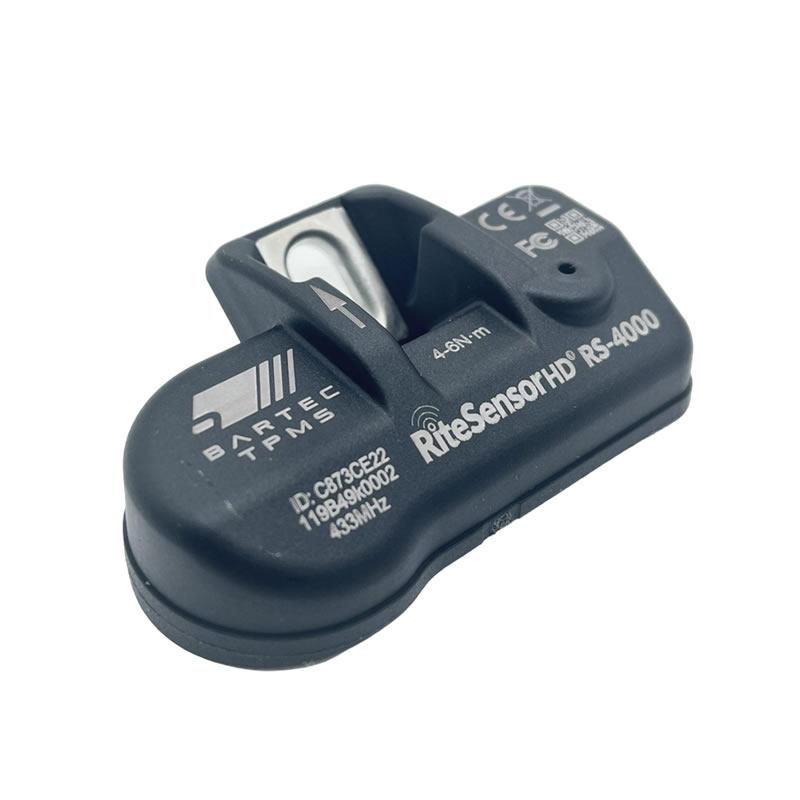

The RITE-SENSOR HD® comes in two body styles: either assembled with a rubber valve stem or with a Velcro band (see pics). If the vehicle is fitted with aluminum valve stems then the fitter may choose to exchange like-for-like. First remove the rubber valve stem by unscrewing the fastener. Insert the aluminum stem into the sensor. Insert the anti-rotation pin into the hole at the base of the stem, just above the sensor body. Insert NEW fastener into stem and torque to 35.5 in-lbs (4Nm).
Common practice is to exchange a stem mounted replacement part for a universal programmable stem mounted part and a banded part with a universal programmable banded part. Ritesensor HD offers both stem and band mounting and rubber and aluminum valve types to enable like-for-like exchange.
Programming

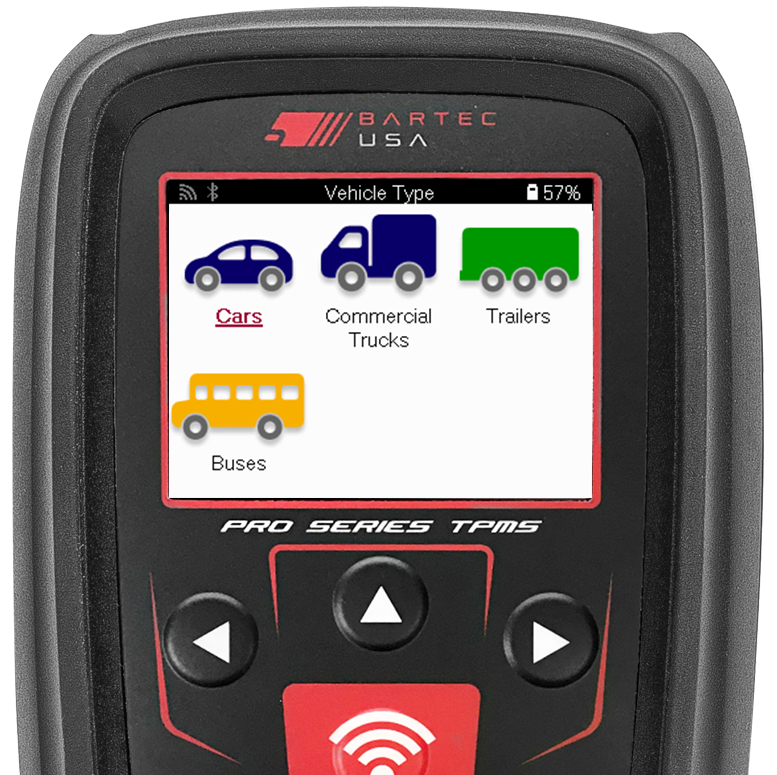

The RITE-SENSOR HD® needs to be programmed BEFORE use. To program the RITE-SENSOR HD® according to specific year, make and model being serviced, follow the instructions on your Bartec Tech600HD TPMS service tool. It is important to know the precise application information to accurately program your RITE-SENSOR HD®.
